Phosphorus Copper Wire Extrusion Line

This extrusion line is for extruding various metal wires continuously, such as copper & copper alloy, silver & aluminum alloy and other non-ferrous metal wires.

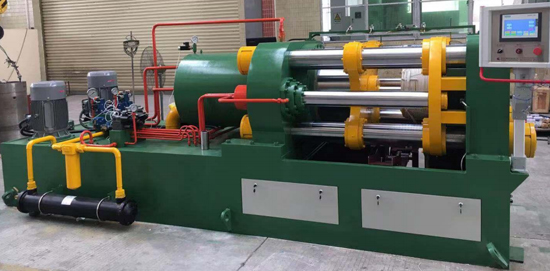

The key machine is of horizontal four-column and piston type dual-cylinder structure, adopting state-of-the-art technology analogue to Germany.

I Line buildup

1.1 VTJ-600T extrusion machine, one set

1.2 VT-1m³ billet baking stove, one set

1.3 VT-350 wire take-up machine, 5 sets

II Main structure features:

- Main cylinder is piston type, Germany technology, stable and constant pressure

- Built-in sub-cylinder, quick oil filling speed, less idle time

- Four-guide-rod structure, better rigidity, good extrusion balance

- Preposed die head design, extruding die head is fixed between front seat of cylinder and piston, no need extra extruding blocks as what other manufacturers do, simplifying many intermediate process and actions.

- Preposed die head design brings more convenient die changing

- Extruding die head adopts double-layer structure, made from high-temperature high-pressure resistant material. Its hardness will not drops even after long time heated.

- Extruding die head adopts induction heating manner, quick heating speed; Any temperature can be obtained accurately for various technological requirements.

- Auto opening/closing die and auto die-pushing-out, simple and quick die changing

- Both extrusion die and rod are made from special forged steel, high temperature & pressure resistant and high wearing resistant, high performance and high precision, assuring stable and continuous extrusion.

- Both front and rear seats are made from cast steel, enough strength and rigidity, assuring coaxiality and verticality between pushing rod and die head under high pressure.

- Adopts dual hydraulic systems. High pressure system is for main cylinder and sub-cylinder. Low pressure system is for die opening/closing and pushing-out.

High pressure system has two oil pumps, main pump is for extruding and the auxiliary one is for quick filling oil and generating pressure. After filling oil, this auxiliary pump will act as circulating hydraulic oil to cooler.

III Main advantages

- PLC control, HMI operation, simple and convenient

- Technological parameters can be saved and recalled

- Control circuit voltage is DC24V, conforms to CE requirement

- Adopting precious EC10-4TC temperature control module, temperature error is only ±5℃

- There are four units timing switches for pre-heating, enabling workers to start production as soon as they come to work.

- Self-diagnosing & alarming function

- Quick heating, quick tool auto changing

IV Main technical data of extrusion machine

No.	Item	Data
1	Main cylinder diameter	Φ 560mm
2	Sub-cylinder diameter	Φ 150mm
3	Main cylinder tonnage	600T
4	Main cylinder pressure	Max. 24MPa
5	Min cylinder stroke	540mm
6	Quick forward speed	150mm/s
7	Quick backward speed	200mm/s
8	Applicable billet size	Φ 50 (Φ 60) x 150~180mm
9	Min. extrusion wire diameter	Φ3mm x 5
10	Extrusion speed	3 minutes/billet
11	Extrusion head heating power	30kW
12	Extrusion head heating temperature	Max. 500℃
13	Total electric power	60kW
14	Machine dimension	About 5000 x 1600 x 1800mm (L x W x H)
15	Machine weight	About 12500kg

V Main technical data of billet baking oven

No.	Item	Data
1	Oven type	Pass-through channel type, with two slide ways
2	Oven purpose	Pre-heating, constant temperature
3	Effective oven length	1800mm
4	Heating temperature	0~350℃
5	Heating power	18kW
6	Circulating fan power	0.37kW x 2
7	Slide way slope	8°
8	Machine dimension	About 2080 x 1150 x 1500mm (L x W x H)
9	Machine weight	About 600kg

VI Main technical data of wire take-up machine

No.	Item	Data
1	Take-up model	Horizontal, smooth rod ordering
2	Applicable wire diameter	Φ1.0~4.0mm
3	Take-up motor power	4kW
4	Max. take-up reel weight	200kg
5	Max. reel OD	350mm
6	Speed control	inverter
7	Machine dimension	About 1320 x 950 x 1130mm (L x W x H)
8	Machine weight	About 200kg

VII Main configuration

- PLC & touch screen: Siemens brand

- Hydraulic valves: Huade, best brand from China

- Switch, contacts: Schneider brand

VIII Working conditions

- Transformer capacity required for each extrusion line: 130kVA

- Workshop area occupation: about 15500 x 2000 x 2000mm

- Ambient condition should be clean, dry and good circulated

- Cooling water required: 5m3/h, 0.15-0.4MPa, temperature ≤30℃
