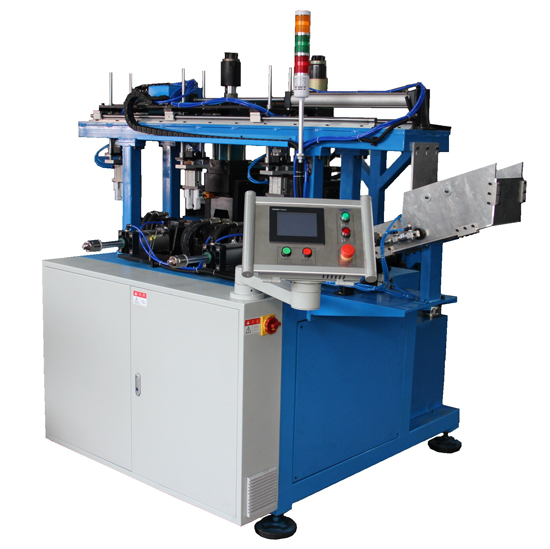

Copper Y-fitting Forming Machine

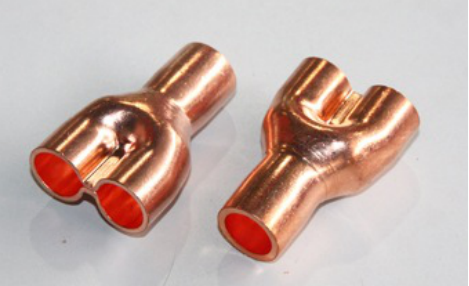

This machine is specially designed for forming one end of copper tube to be two-way, three-way or four-way inlet / outlet.



It is actually a hydraulic tube end forming machine with automatic loading and unloading function, servo motor driving manipulators for moving among several stations.

Copper tube feeding is achieved by hopper, manual loading.

This machine is PLC control, HMI operation, full automatic.

Main technical data:

No.

Item

Data

1

Applicable copper tube diameter

Max. Φ80mm

2

Applicable copper tube length

Min. 25mm

3

Working productivity

20~30 pcs/min

4

Tube mouth deformation ratio

<3%

5

Servo motor power

0.75kW

6

Hydraulic station motor power

5.5kW

7

Hydraulic pressure

6~8MPa

8

Compressed air

0.4~0.6MPa
