Semi-automatic Radiator Core Assembly Machine

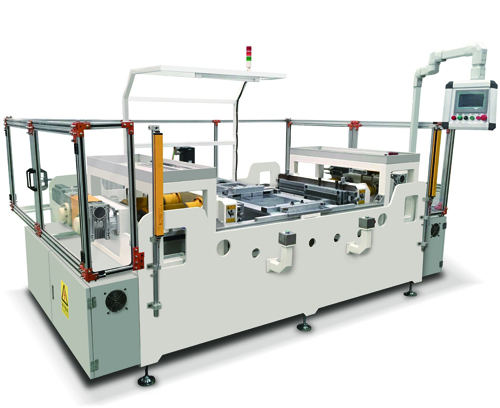

semi-automatic radiator core assembly machine

I Brief description of semi-automatic radiator core assembly machine

Comparing to full automatic radiator core assembly machine, there is no flat oval tube dispenser. And so both flat tubes and fins will be applied manually.

The machine is capable for different size cores by changing different tools and adjusting pressing strokes. Related data such as clamping stroke and pressing strokes can be saved and recalled for next time use.

|radiator core assembly machine|radiator core assembling machine| radiator core building machine| radiator core builder|

II Main features of semi-automatic radiator core assembly machine

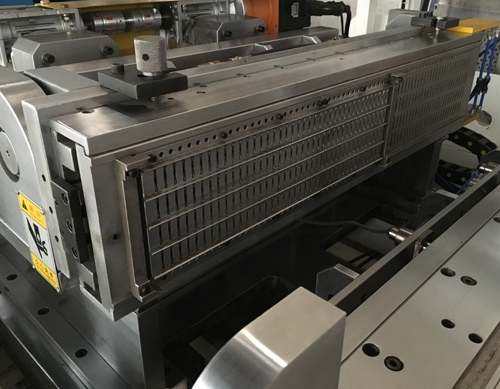

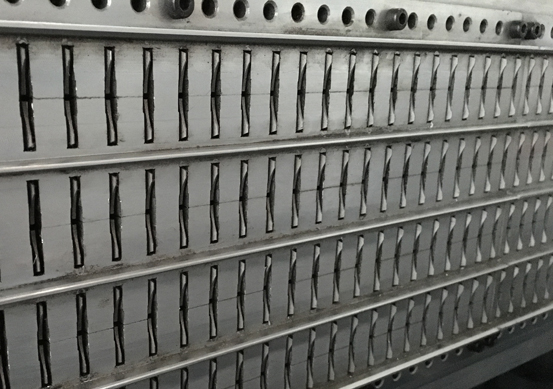

- For different pitch only change pitch control tooling (combing device)

- PLC control +HMI operation|radiator core builder|radiator core assembling machine|radiator core building machine|

- Safety measures are provided such as safety raster, alarming lamp and buzzer

- Servo driven header plate assembling and core clamping

|radiator core assembly machine|radiator core assembling machine| radiator core building machine| radiator core builder|

III Main technical data of semi-automatic radiator core assembly machine

Item

Data

Distance between header plates

Customized

Distance between side plates

Customized

Thickness of built core

Max. 5-row

Core building precision

Core diagonal length error

± 1.0mm

Core height error

±1.0mm

Core width error

±1.5mm

Clearance between fin and header plate

2±1mm

Main die changing speed

Less than 30 minutes

Air source

0.6~0.8MPa

|radiator core assembly machine|radiator core assembling machine| radiator core building machine| radiator core builder|

IV Tube end flaring function is optional to this radiator core assembly machine:



|radiator core assembly machine|radiator core assembling machine| radiator core building machine| radiator core builder|
