Coil Copper Tube Bevelling Cutter

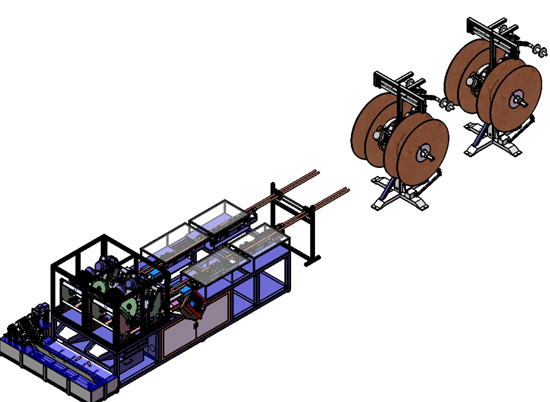

This machine is specially designed for decoiling, straightening and bevel cutting coil copper tubes into bevelled ends as blank tubes for copper elbows or Tee connectors production.

The machine is PLC control, HMI operation, full automatic, high uniformity, no labor required.

Main technical data

No.

Item

Data

1

Suitable copper tube material

TP1/2 (M/M2)

2

Suitable copper tube reel size

Max. weight 280kg

Max. OD: Ф1250mm; ID: Ф130mm

3

Suitable coil copper tube diameter

 Φ6~22mm x 0.3~1.5mm

4

One time cutting tubes

4

5

One-time feeding stroke

Max. 150mm

6

Cutting length

unlimited

7

Linear straightness error

≤2‰

8

Re-positioning error

When L≤1000mm, ≤0.3mm

When L≥1000 mm, ≤0.6mm

9

Length difference between tubes

≤0.5mm

10

Surface condition after cut

No apparent scratch, drawing marks; no burrs

11

Roundness of cut tubes

Out-of-roundness less than 0.2mm

12

Productivity

More than 64 pcs/min

13

Electric power

380V / 50Hz / 6kW

14

Pneumatic source

0.5 - 0.7MPa
