Parallel-flow Condenser Header Pipe Grooving Machine

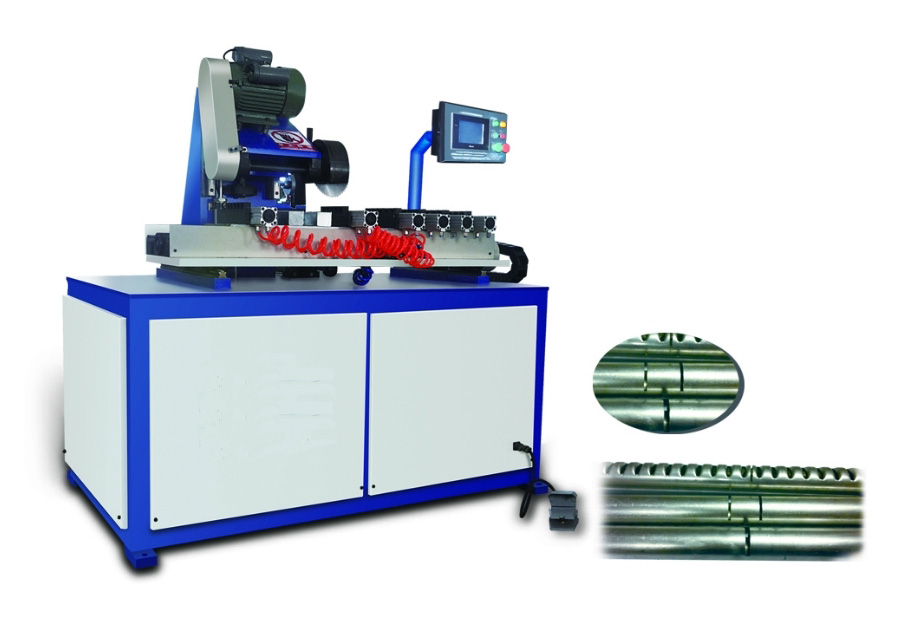

I Description of header pipe grooving machine:

This machine is specially designed for slotting grooves on header pipes.

This machine is servo motor feeding, PLC control, touch screen operation, full automatic (except for manual clamping and unloading). Groove numbers and distance between every groove can be preset.

The machine can cut grooves on max. 5 pipes simultaneously.

II Main technical data of header pipe grooving machine:

Item

Data

Suitable header pipe diameter

customized

Suitable max. header pipe length

750mm

Max. groove numbers on one pipe

Max. 10 pieces

Min. distance between pipe end and first groove

20mm

Groove position tolerance

+/-0.5mm

Production speed

5s per groove

Max. Header pipe quantity to be grooved per cycle

5

Cutting saw blade speed

3500rpm

Air source

0.4~0.68MPa

Total motor power

1.5kW

III Main configuration of header pipe grooving machine:

- PLC& HMI: Delta from Taiwan

- Servo motor & drivers: Delta from Taiwan

- Linear guide & ball screw: TBI brand from Taiwan

- Contactor & circuit breaker: CHNT from China (best brand)

- Intermediate relay: Omron from Japan

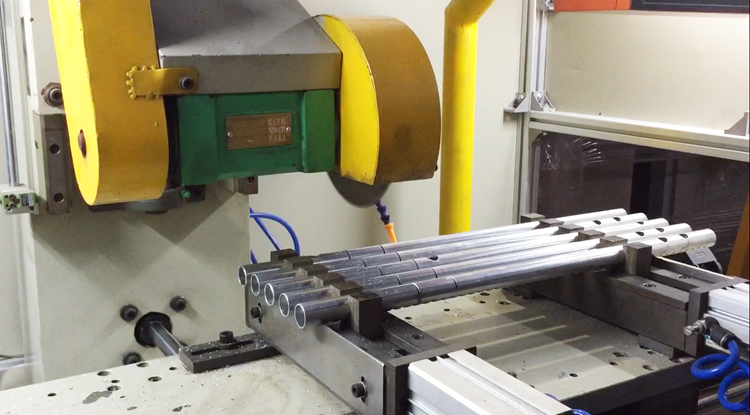

IV Working header pipe grooving machine:
