Multi-station Tube End Former

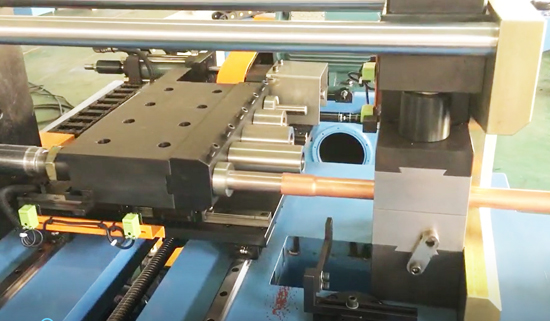

This machine is designed in horizontal auto-changing forming station, capable for various copper tubing works, such as expanding, reducing, ribbing, mouth ordering, etc.

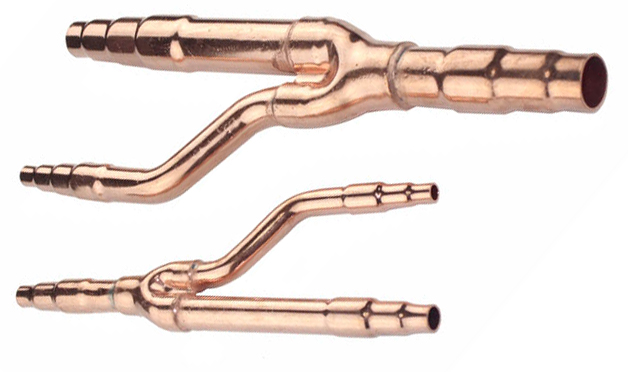

There are six stations, five are of direct-pushing type, one stations is of spinhing-head type. Exchanging among 6 stations is achieved by servo motor and program preset on HMI, especially suitable for copper manifold production:


This machine is equipped with hopper for blank tubes, auto feeding.

This machine is PLC control, HMI operation, simple and convenient.

Main technical data

No.

Item

Data

1

Applicable copper tubes

Straightened cut tubes

2

Applicable copper tube diameter

Max. 60mm

3

Applicable copper tube wall thickness

Max. 2.5mm

4

Min. cut tube length

40mm

5

Min. linear length of reduction/expansion

20mm

6

Max. processing stroke

100mm (adjsutable)

7

Coaxiality between finished end and tube center

Less than 0.1mm

8

Out-of-roundness of finished end

Less than 1% of tube diameter

9

Max. Processing depth error

Less than +/-0.5mm

10

Single action duration

2-3 seconds

11

Hydraulic pressure

Max. 12MPa

12

Hydraulic pump motor power

7.5kW

13

Spinng motor power

3.75kW

14

Servo motor power

0.75kW

15

Reducing / expanding die material

Cr12MoV, quenched HRC 58-62

16

Hydraulic station cooling method

Compulsive air cooling
