Header Pipe Punching Machine

condenser header pipe punching machine

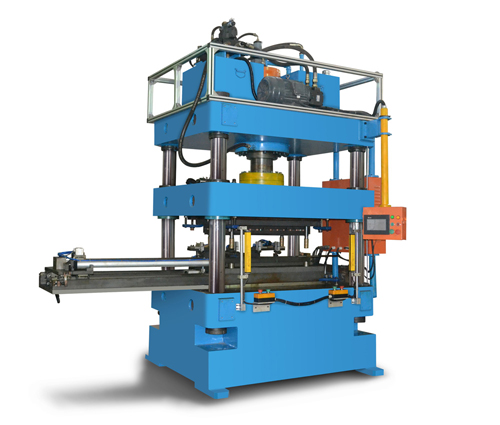

I Description of header pipe punching machine


This machine is specially designed for producing header pipes to be used in PF condensers or evaporators.

Main power of this machine is hydraulic and pneumatic, assisted by spraying lubricate. It is four-guide structure, simple and convenient operation & maintenance. By changing different piercing dies quickly, different header pipes can be produced.

The hydraulic system adopts big-flow plug-in valves, high speed, stable running.

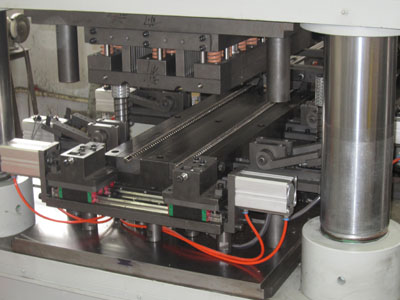

The machine is PLC control, HMI operation. Manually inserting aluminum pipe onto core axis, pressing down start button, machine will automatically position, insert core axis, clamp, lubricate, punch, shock, draw core axis, raise and automatic release finished header pipe. unloading.

Equipped with light curtain protection system, operation is very safe.

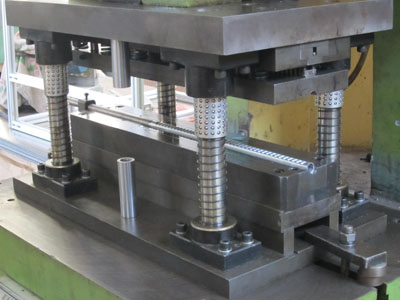

An universal punching die will be capable for different long header pipes, but in same diameter and same slot specifications.

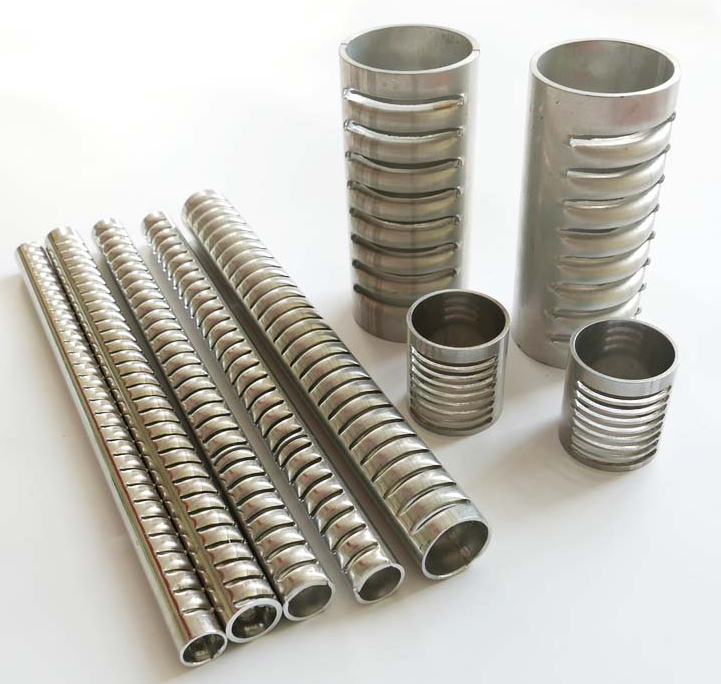

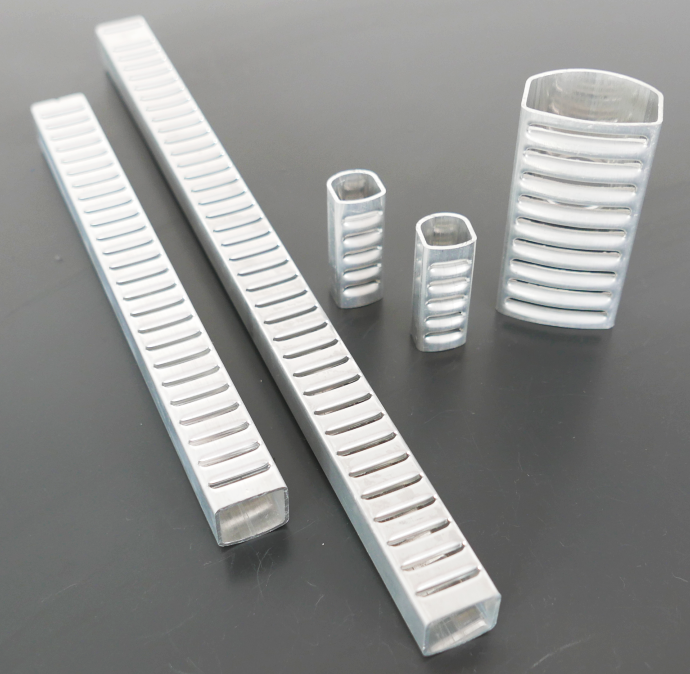

II Header pipes can be made by this header pipe punching machine:

III Main technical data of header pipe punching machine

Item

Data

Machine code

JLG-Y900

Max. working force

60T

Pipe quantity can be produced one time

One

Suitable material

Aluminum or copper

Suitable pipe diameter and wall thickness

Φ30mm x (1.0~1.6)mm

Suitable pipe effective length

100~550mm

Pierced slot width and tolerance

1.0~3 ± 0.03 mm

Pierced slot length and tolerance

16~36 ± 0.03mm

Center distance between slots and tolerance

5~12 ± 0.05mm

Production speed

About 20 seconds per piece

Die changing speed

About 30 minutes

Hydraulic pressure

8~21MPa

Pneumatic pressure

0.5~0.8MPa

Hydraulic oil

ISO VG32 for winter; ISO VG46 for Summer

Lubricant oil

ISO VG22-32

Total motor power

7.2kW

Machine dimension

2800 x 2100 x 2750mm

Machine weight

Total 4200kg

IV Main configurations of header pipe punching machine


- Electromagnetic valve, check valve, over-flow valves: Jeou Gang from Taiwan

- Pneumatic components: SMC from Japan

- Relay: Schneider

- Limit switch: Schneider

- PLC& HMI: Siemens from Germany

- Servo motor and driver: Siemens from Germany

- Linear guide: TBI from Taiwan
