Automatic Copper Tee Connector Expanding & Chamfering Machine

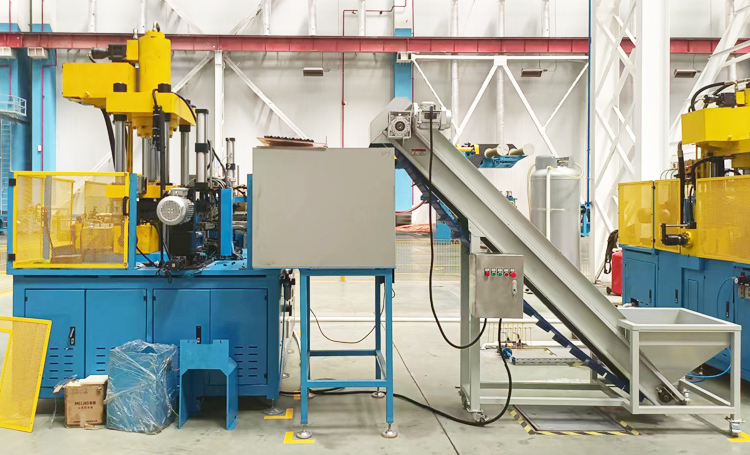

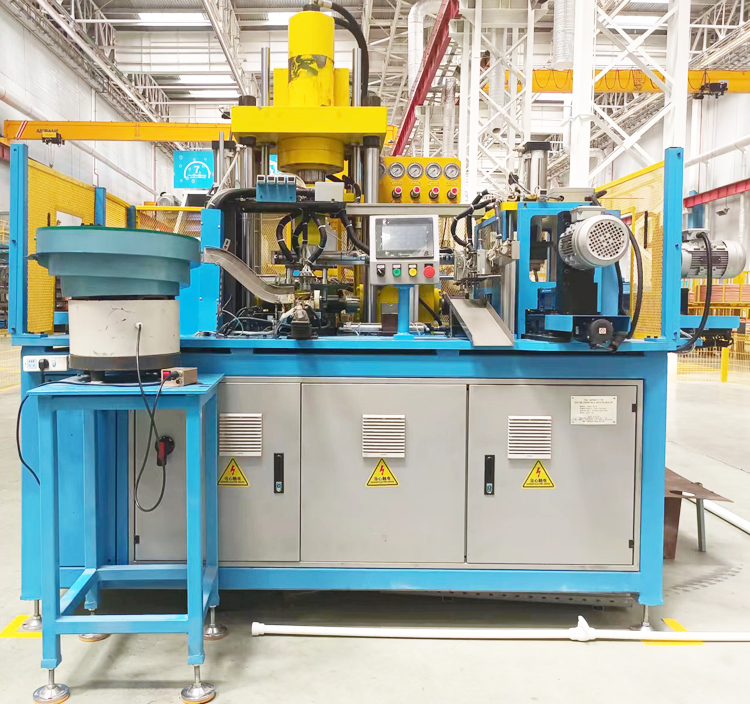

This machine is specially designed for processing copper Tees, in turn-table structure, total four stations, combing loading/unloading, middle branch end cutting, three ends expanding and three ends ordering together.



By changing tooling/moulds, different sizs Tees can be processed.

Main technical data:

Item

RD68-ZP18

RD68-ZP28

Graduated turntable

Servo drive, 4 stations

Applicable copper tube diameter

Max. Φ 18mm

Max. Φ 28mm

Cycle time

6~8 seconds

10~12 seconds

Productivity

3500~4000 pcs per 8 hours

2400~2800 pcs per 8 hours

Tube mouth deformation ratio

Less than 3%

Rotating servo motor power

0.4kW

0.4kW

Middle end cutting motor power

0.75kW

1.1kW

Three end ordering motor power

0.75kW x 3

1.1kW x 3

Hydraulic pump motor power

7.5kW

11kW

Hydraulic pressure

20MPa

25MPa

Pneumatic pressure

0.5-0.7MPa

Cooling water

0.2~0.3MPa, temperature≤32ºC, flow 120L/min
