Servo Header Pipe Punching Machine for Sampling Header Tubes

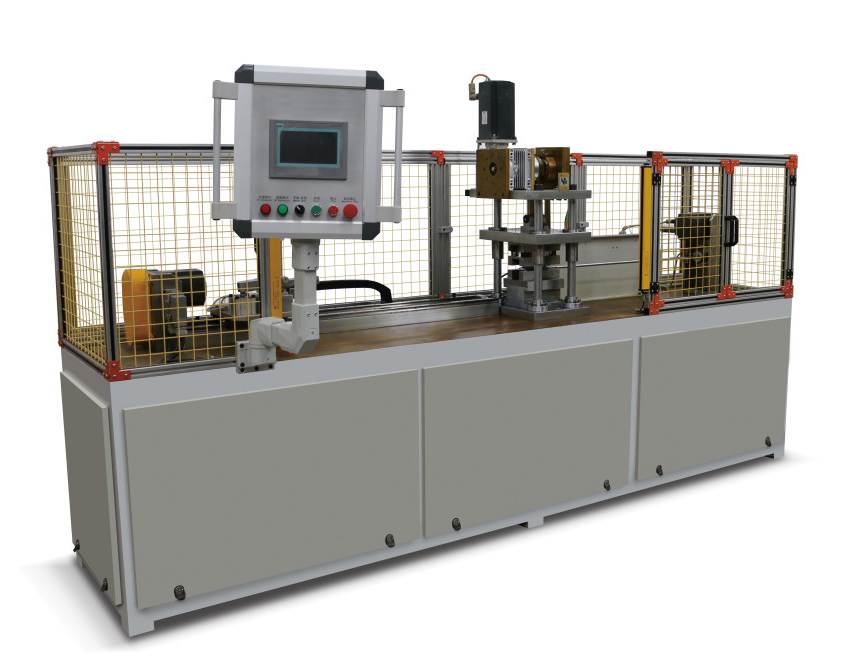

I Description of servo header pipe punching machine:

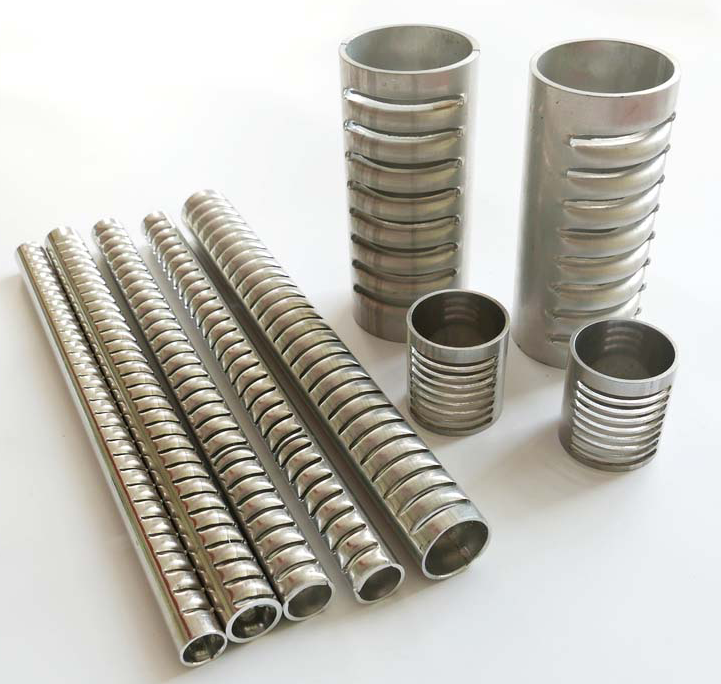

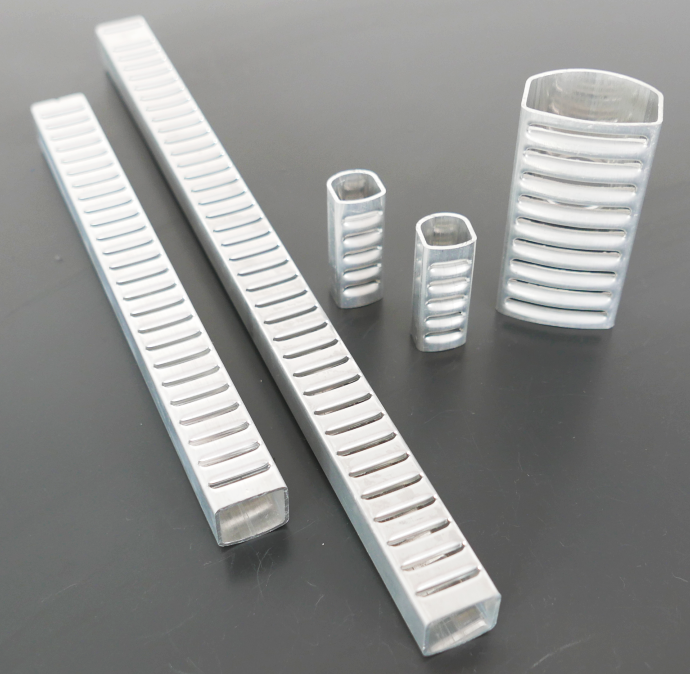

This machine is specially designed for producing header pipes for sample purpose only.

This machine can automatically clamp, feed, lubricate, punch and release, only need manually loading & unloading pipes.

This machine is PLC control, HMI operation, servo driving.

II Main technical data of servo header pipe punching machine:

Item

Data

Machine code

JLG-S630

Max. Header pipe length

630mm

Header pipe OD and wall thickness

customized

Pierced slot size

customized

Tolerance of pierced slot center distance

± 0.02mm

Servo feeding speed

300mm/s

Feeding precision

± 0.01mm

Punching speed

About 5 seconds per slot

Life of punching die

Not less than 300,000 times

Max. Punching pressure

15T

Pneumatic pressure

0.5~0.8MPa

Hydraulic oil

ISO VG32 for winter; ISO VG46 for Summer

Lubricant oil

ISO VG22-32

Total motor power

5kW

Machine dimension

3200 x 1000 x 1600mm

Machine weight

Total 1500kg

III Main configuration of servo header pipe punching machine

- Pneumatic components: SMC from Japan

- Relay: Schneider

- Limit switch: Schneider

- PLC& HMI: Siemens from Germany

- Servo motor and driver: Siemens from Germany

- Linear guide: TBI from Taiwan
