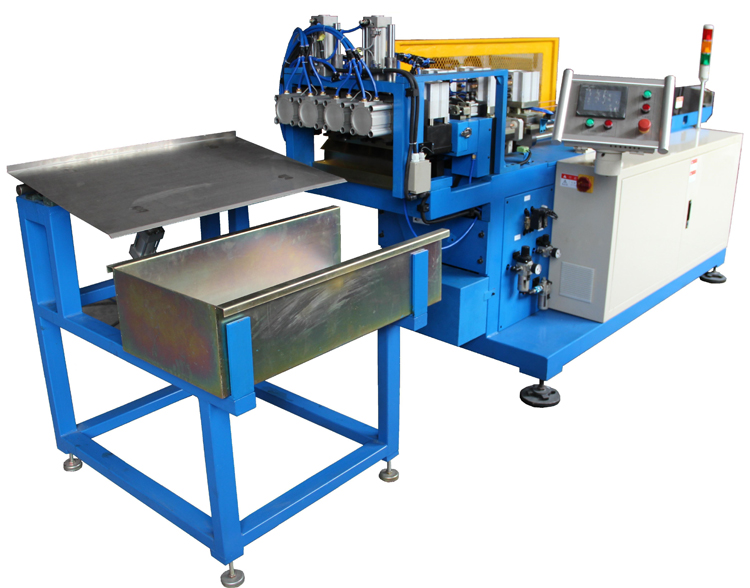

This is a standard coil copper tube straightening & chipless cutting machine, integrated with online flaring (expanding) function, full automatic, perfect for air conditioner copper tubing works.
I Main features:
- Servo feeding, stable and high re-positioning precision
- One time processing four pieces, high efficient
- Adopting pull-apart technology, less tube end ID reduction ratio
- Pneumatic flaring (expanding)
- PLC control, high automation—auto feed, auto flaring, auto cut, auto unload, auto alarm.
II Main technical data
No. |
Item |
Data |
1 |
Suitable copper/aluminum tube |
Coil, TP1/2 (M/M2) |
2 |
Suitable tube diameter range |
Ф4.0~10.0mm |
3 |
Suitable tube wall thickness |
Max. 0.7mm |
4 |
Cutting length range |
Min. 100m; no limit on max. length |
5 |
Pay-off device |
Passive, for four tubes |
6 |
Cutting station |
Two stations (each for two tubes) |
7 |
Cutting speed |
6 cuts per minute (@L=600mm)* |
8 |
Feeding speed |
Max. 0.5m/s |
9 |
Max. takt time |
7 seconds |
10 |
One-time feeding stroke |
Max. 800mm |
11 |
Straightness tolerance |
≤2‰ |
12 |
Cut-to-length tolerance |
≤0.3mm /1000mm |
13 |
Length difference between two tubes |
≤0.5mm |
14 |
Tube end ID reduction ratio |
f < 25%* |
15 |
Out-of-roundness of finished end |
Less than 1% of tube diameter |
16 |
Coaxiality between finished end and tube center |
Less than 0.1mm |
17 |
Max. processing depth error |
Less than +/-0.5mm |
18 |
Compressed air |
0.5-0.7MPa |
19 |
Total electric consumption |
6kW |
III Main buildup:
3.1 Pay-off device: four, passive decoiling
3.2 Straightening & rounding device: straightening deformation can be adjusted for different hardness copper tubes. When size changing, rounding wheel and straightening wheel will be changed.
3.3 Feeding device: driven by servo motor; Pulling and clamping dies are driven by enhanced pneumatic cylinders.
3.4 Cutting device: orbital-notching + pulling-apart method, pneumatic driving feeding stroke of orbital blade, stable feeding and quick returning; The feeding stroke can be fine adjusted to assure same mouth shrinking rate; Equipped with lubricant spraying device for lengthening blade life.

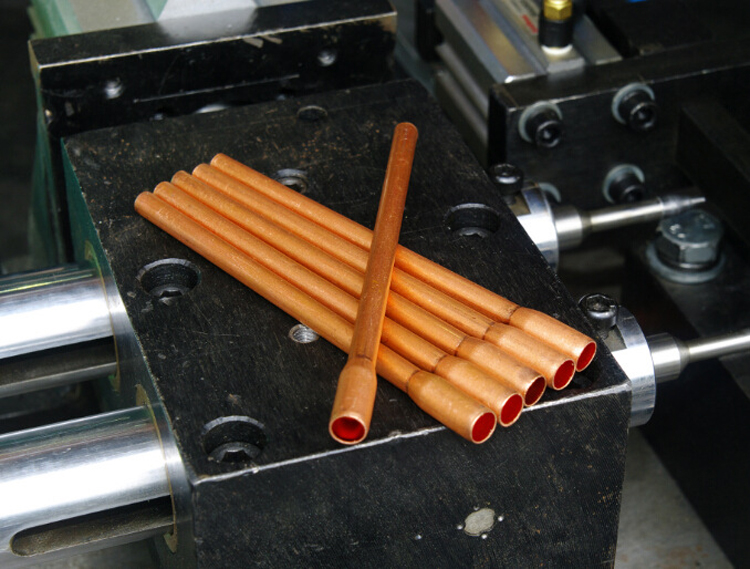

3.5 Flaring device: pneumatic elevating
3.6 Unloading table: covered with stainless steel, 700mm long
3.7 All the clamping dies are made by chrome steel, quenched HRC 50
3.8 Control system: PLC + touch screen

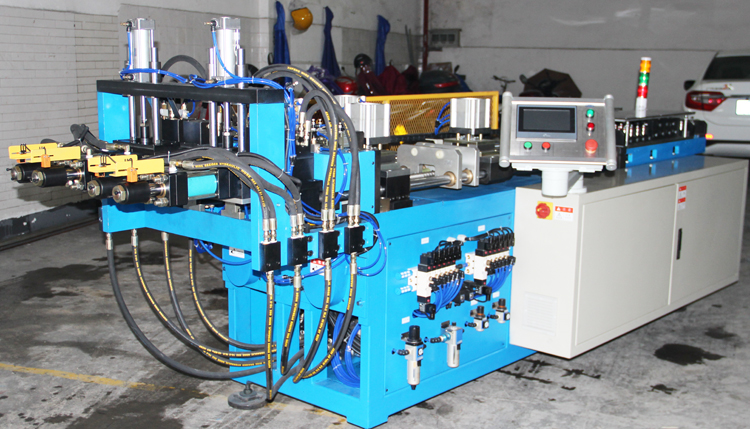

** Heavy-duty integrated flaring & cutting machine:
For bigger diameter copper tubes max. 22mm, above pneumatic flaring machine is not capable, but only hydraulic machine will be capable:
