Radiator Core Leakage Tester

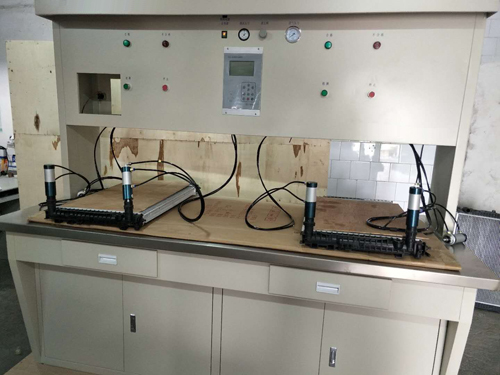

I Description & main features of radiator core leakage testing machine

This testing machine is specially designed for testing air tightness of automotive radiator cores.

- Testing pressure range is 50~400KPa.

- Double-station testing can raise your efficiency well.

- Interface of tester is very clear; operation is very convenient, one key operation, automatic stopping.

- Very high testing precision, measurable leakage 1pa/s.

- Very large memory, 100,000 units testing data can be saved and reviewed.

II Main features of radiator core leakage testing meter

- Very short test time by adopting advanced data collecting & processing technology

- Super high pressure resolution ratio, up to 1Pa

- Perfect circuit and pneumatic self-diagnosing function

- 4.3” large size LCD displayer, very clear and convenient

III Main technical parameters of radiator core leakage testing meter

Item

Data

Measuring range

0.2~20mL/min

Differential pressure

Min. resolution

1Pa

Sensor withstand pressure

2MPa

Test pressure

Min. displaying

1kPa

Displaying range

0~400kPa

Time setting

Filling, balancing, leakage checking, draining separately

Power source

AC 220V ±5%, 50Hz

Test source (dry clean air)

0.6MPa

Working ambient temperature

0~40ºC

Storage temperature

0~50ºC

Relative humidity

Less than 80%, without dew

IV Supplying range of radiator core leakage testing machine

1- Table for double-station & clamps|dry-type radiator leakage testing machine|dry-type radiator leakage tester|

2- Testing meter|dry-type radiator leakage testing machine|dry-type radiator leakage tester|

3- Three cylinders|dry-type radiator leakage testing machine|dry-type radiator leakage tester|

4- Seven sets stoppers (for 7 size tank mouths)|dry-type radiator leakage testing machine|dry-type radiator leakage tester|

5- Printer is optional |dry-type radiator leakage tester |dry-type radiator leakage testing machine|dry-type radiator leakage tester|dry-type radiator leakage testing machine|
