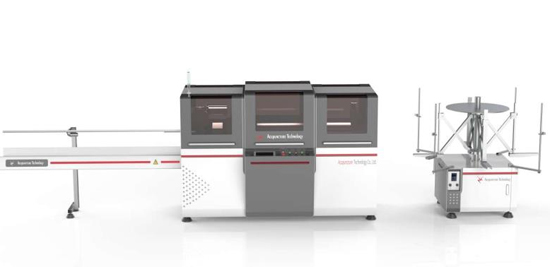

I Description
This series of machine is capable for straightening & cutting all kinds of metal wires in high precision.
This machine is equipped with an automatic wire pay-off.
The machine is PLC control, HMI operation. Batch quantity can be preset on HMI.
II Main Features
-- PLC control, HMI operation
-- Servo feeding, servo cutting and servo exchanging wire collectors
-- High precision straightness, high precision cutting to length
-- Automatic wire feeding, better straightening result
III Main technical data
|
Model |
TQ-35 |
TQ-65 |
|
Applicable copper wire diameter |
1.2-4.0mm |
3.0-6.5mm |
|
Straightening speed |
50m/min |
|
|
Cutting speed |
More than 100 cuts/min |
|
|
Cut-to-length accuracy |
±0.1mm |
|
|
Straightness error |
±1mm / 500mm |
|
|
Total power |
2.8kW |
3.3kW |
|
Machine dimension |
1630 x 910 x 1330mm |
1950 x 910 x 1330mm |
|
Machine weight |
330kg |
450kg |
