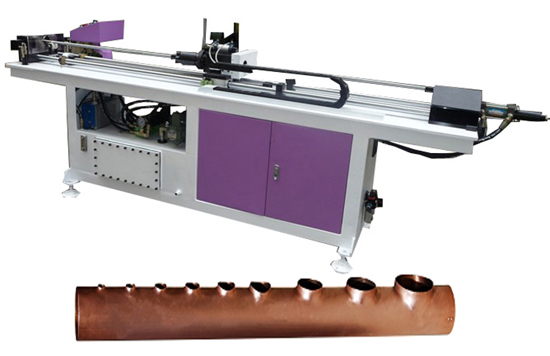

Header Tube Collaring Machine


This machine is specially designed for punching collar holes on copper tubes in AC/R.

Different to T-drill technology, our machine adopts "Extruder system": forming collars by pushingout from tube inside. By this technology, collar hole mouth is clean and even, no need further processing. So it is suitable for large scale production.

This machine has two servo motors, one for feeding and another for rotating, capable for collaring at any positions on the tube.

I Main features:

- Servo feeding, servo rotating, hydraulic punching

- PLC + HMI, full automatic, only manual loading & unloading

- Fast collaring, clean collar hole mouth

- Medium-speed wire cut molds, more than 100,000 times punching life

II Main technical data

No.

Item

Data

1

Max. copper tube diameter

Φ50mm (customized)

2

Min. copper tube diameter

Φ12.7mm

3

Copper tube wall thickness

1-2.7mm

4

Max. tube length

1500mm (customized)

5

Min. collar hole diameter

Φ5.0mm

6

Collar hole inner diameter precision

±0.05mm

7

Min. space between two holes

25mm

8

Hole collar height

Tube diameter < Φ12.mm

1.5mm

Tube diameter > Φ16mm

2mm

9

Verticality between collar and tube

≤0.5°

10

Feeding speed

600mm/S

11

Rotating speed

360°/S

12

Feeding axis position precision

±0.10mm

13

Rotating axis position precision

±0.10°

14

Max. clamping force

800kg

15

Max. punching force

2000kg

16

Clamping method

hydraulic

17

Punching efficiency

3~5 seconds per hole

18

Hydraulic station pump motor power

2.2kW

19

Total power

3.5KW
