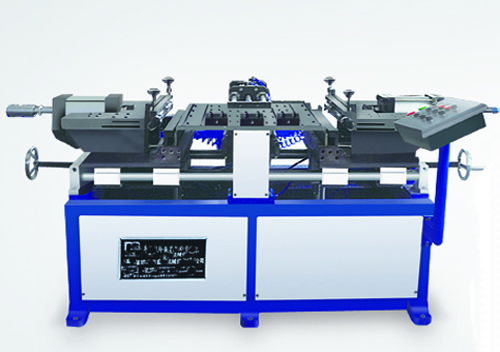

Pneumatic Radiator Core Building Machine

I Main description of pneumatic radiator core building machine


This machine is specially designed for assembling aluminum radiator core of automotive in double-row flat oval tubes structure.

Flat oval tubes applying and fin applying are manual. Main core compacting is pneumatic. Header plates applying is manual, pneumatic support.

The machine is capable for different size cores by changing tools.

|pneumatic radiator core building machine| pneumatic radiator core builder| manual radiator core builder|manual radiator core building machine|

II Main features of pneumatic radiator core building machine

- Universal chassis adapting to various size cores

- For different pitch only change pitch control tooling

- PLC control, buttons operation

- Safety measures are provided such as safety raster, alarming lamp and buzzer

|pneumatic radiator core building machine| pneumatic radiator core builder| manual radiator core builder|manual radiator core building machine|

III Main technical data of pneumatic radiator core building machine

Item

Data

Distance between header plates

200-800mm

Distance between side plates

200-680mm

Thickness of built core

16~48mm

Machine running cycle

(one cycle, excluding tube & fin applying)

Less than 30s

Main die changing speed

Less than 30 minutes

Air source

0.6~0.8MPa, 0.1m3/min

Machine dimension

About 2800 x 2200 x 1800mm

|pneumatic radiator core building machine| pneumatic radiator core builder| manual radiator core builder|manual radiator core building machine|

Note: For four-row radiator cores, this manual core builder will be also capable. Just pneumatic cylinder has no enough power for side pressing. You can only use side cylinders as support and manually fix header plates to core. Please check this video for reference: https://youtu.be/83C_dewZTY0.
