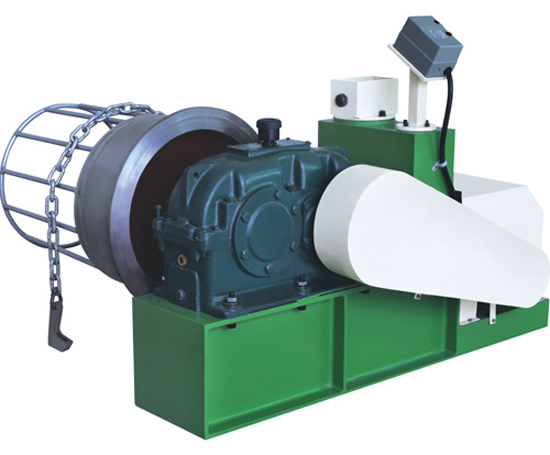

This single-head wire drawing machine is of simple structure, drawing and rewinding enjoy same drum. The drum is directly linked to reducer, good drawing torque.
There will be one online heating device special for phosphorus wire drawing purpose.
I Line buildup
1.1 Wire pay-off device, one set
1.2 Online medium-frequency heating oven, one set
1.3 VT-50 wire drawing machine, one set
II Main technical data of extrusion machine
|
No. |
Item |
Data |
|
1 |
Blank wire diameter |
Φ 3mm |
|
2 |
Max. drawn per cycle |
0.2~0.5mm |
|
3 |
Max. Drawn diameter ratio |
13% |
|
4 |
Max. Drawing speed |
30m/min |
|
5 |
Heating power |
15kW |
|
6 |
Die hole numbers |
single |
|
7 |
Die changing speed |
Within 5 minutes |
|
8 |
Drum diameter |
520mm |
|
9 |
Drawing motor power |
15kW |
|
10 |
Machine dimension |
About 3000 x 1150 x 850mm (L x W x H) |
|
11 |
Machine weight |
About 1200kg |
