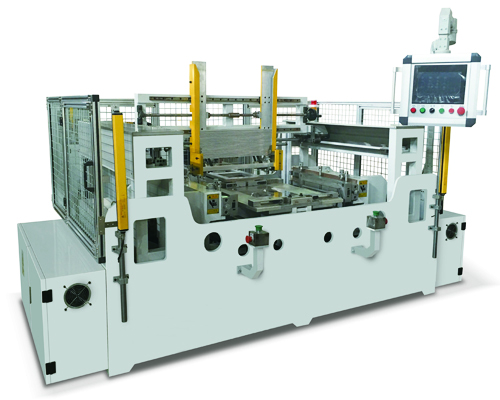

Automatic Condenser Core Assembling Machine


I Description of automatic condenser core assembling machine

This machine is specially designed for assembling condenser core of automotive air conditioner.

Microchannel aluminum tubes are automatically applied by servo driving dispenser.

The machine is capable for different size cores by changing different tools and adjusting pushing strokes on HMI.

II Main features of condenser core assembling machine

- Universal chassis adapting to various size cores

- For different pitch only change pitch control tooling

- PLC control +HMI operation

- Safety measures are provided such as safety raster, alarming lamp and buzzer

- Servo driven header pipes assembling and core clamping

- Servo driven dispenser applying microchannel tubes automatically

III Main technical data of condenser core assembling machine

Item

Data

Distance between header pipes

300-900mm

Distance between side plates

100-680mm

Core building precision

Core diagonal length error

± 1.0mm

Core height error

±1.0mm

Core width error

±1.0mm

Clearance between fin and header pipe

2±1mm

Production speed (one cycle)

Less than 40s per core

(based on operators skill)

Machine running cycle

Less than 30s

Model changing speed

Only core width changing

Less than 10 minutes

Width & height changing

Less than 30 minutes

Width, height & thickness changing

Less than 50 minutes

Air source

0.6~0.8MPa

Machine dimension

About 2000 x 1800 x 1890mm

IV Main configuration of condenser core assembling machine

- PLC & HMI: Mitsubishi from Japan

- Servo motors and drivers: Mitsubishi from Japan

- Ball screw and linear guide: TBI brand from Taiwan

- Intermediate relay: Omron from Japan

- Pneumatic components: AIRTAC from Taiwan
