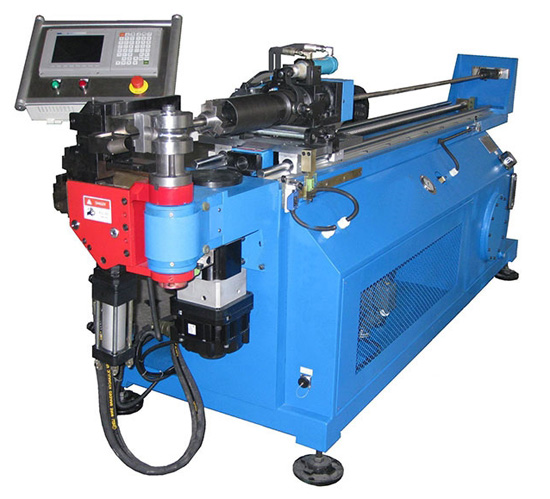

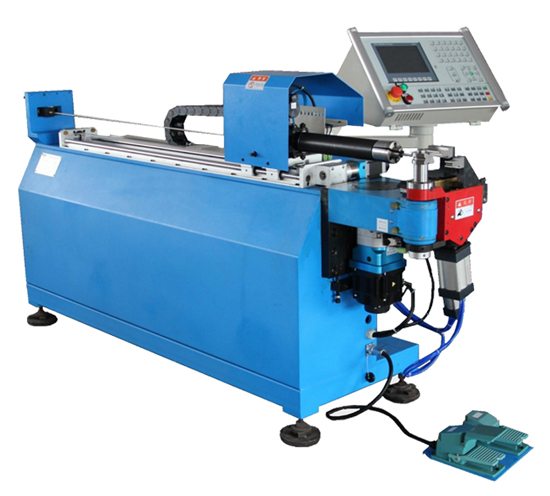

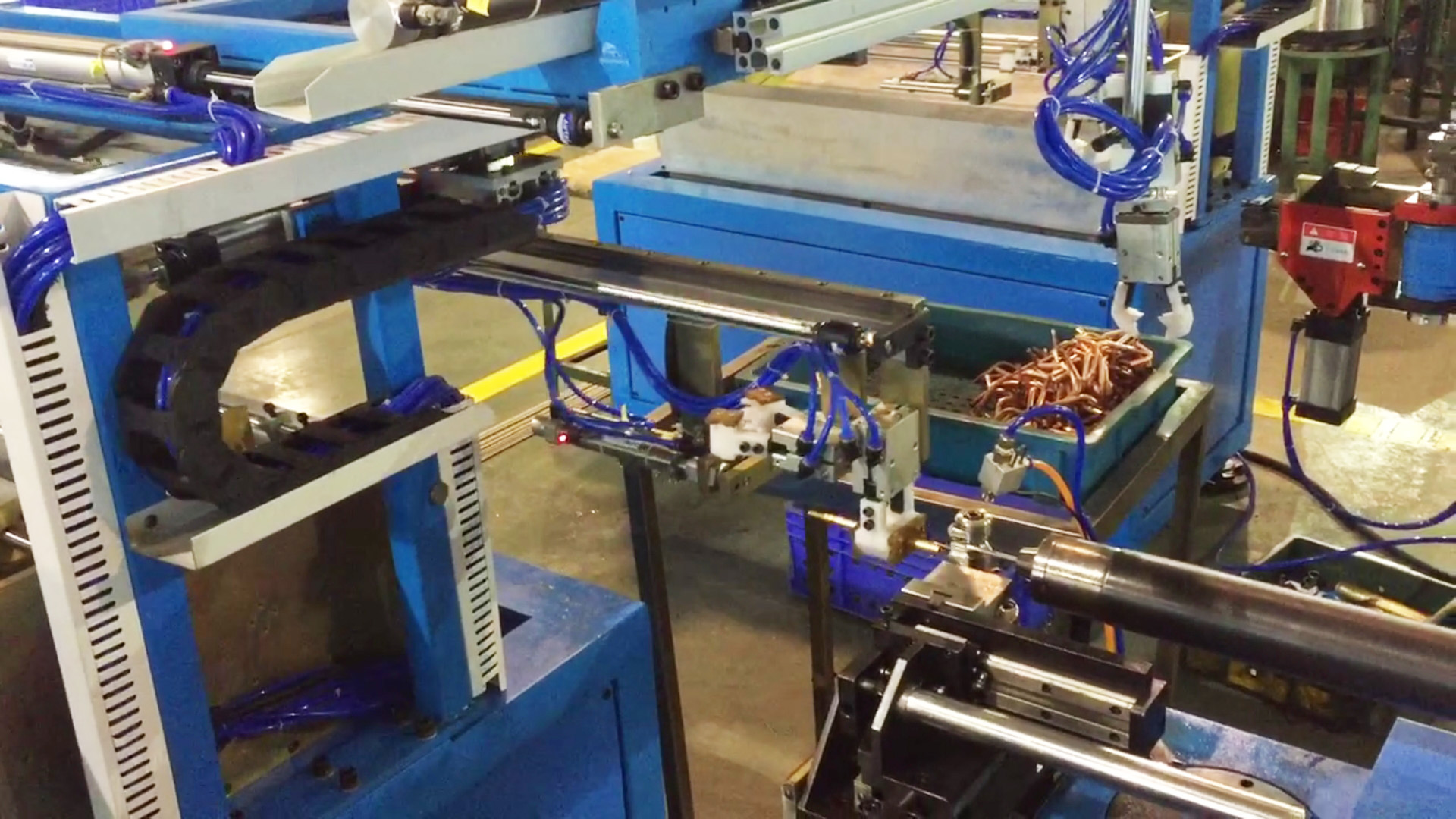

CNC 3D copper tube bending machine

I Main features

1)The machine frame and body adopt keel structure to ensure machine with high intensity, rigidity, and stability.

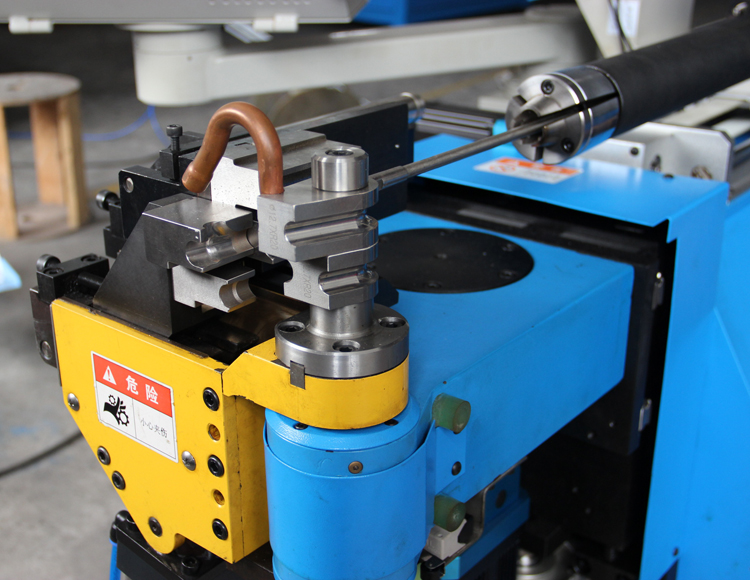

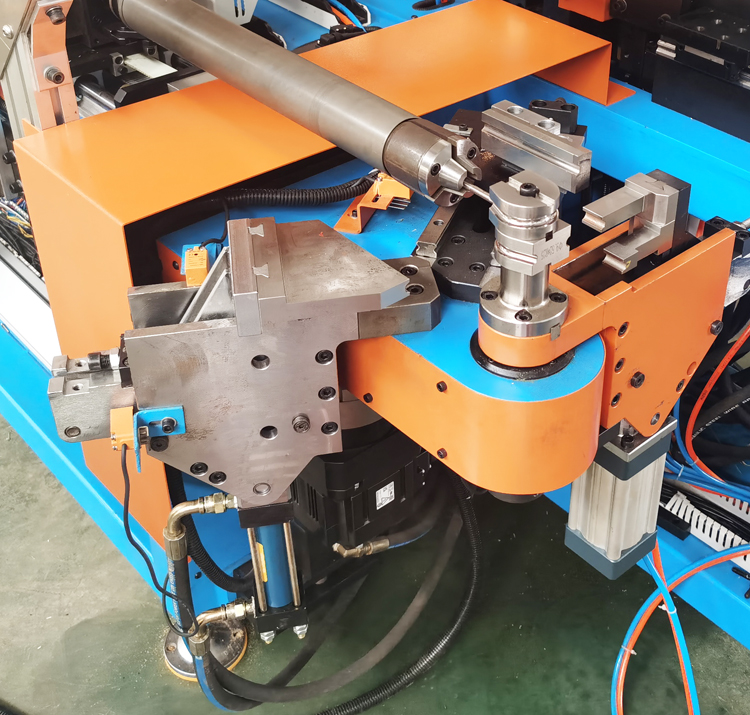

2) The bending head is designed in integral box structure and bending arm adopts precise teeth chain as transmission, high precision.

3) Special clamping structure ensures enough clamping force, not to damage workpiece.

4) The core rod is of universal joint type, exempting from lubrication.

5) Machine has self-testing function for detecting original of X and Z axis and dead point alarming.

6) 8” LCD displayer, integrative antifouling keyboard

7) CNC controller can save 400 units programs for 400 products, G-M code, with RS232 interface

8) Program has auto-calibration function for bending angle and length, auto counting, auto alarming, power-off memory.

II Main technical data

Item

Data

Suitable bending tube diameter

Copper/aluminum

Max. 20mm

Carbon steel

Max. 16mm

Suitable tube wall thickness

Copper/aluminum

Max. 1.5mm

Carbon steel

Max. 1.0mm

Max. bending angle

0- 200º

3D rotating angle

360º

Max. bending radius

R80mm

Min. bending radius

R10mm

Max. workpiece length

1800mm (through-type)

Feeding stroke

0-1200mm

General bending efficiency

2.2 sec. per bend

Feeding speed

1-1200mm/sec.

Rotating speed

0-600 º/sec.

Bending speed

0-300 º/sec.

Re-positioning precision

Feeding axis

±0.05mm

Rotating axis

±0.05º

Bending axis

±0.05º

Servo motor power

Feeding axis

1.5kW

Rotating axis

0.75kW

Bending axis

3.0kW

Pneumatic pressure

0.5-0.7MPa

Power supply

380V, 3Phase, 50Hz

Machine dimension

2500 x 620 x 1300mm

Weight

About 1200kg

III Main configuration

- CNC controller: self-made CNC control system

- Servo motors and drivers: Mitsubishi from Japan

- Ball screw and linear guide: THK from Japan

- Approaching switches & sensors: Autonics from Korea

- Circuit breaker: Fuji from Japan

- Main bearings: NSK from Japan

- Buttons: Schneider
