Aluminum Radiator Fin Rolling Machine

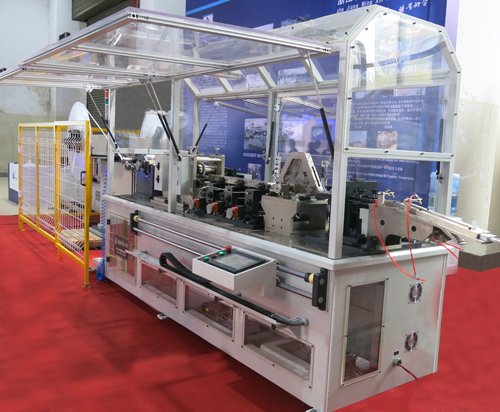

aluminum radiator fin machine

I Main features of aluminum radiator fin rolling machine:

- PLC control, HMI operation, simple and convenient

- Quick changeable tool changing

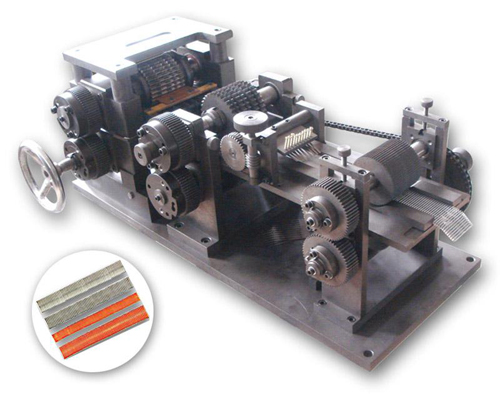

quick changeable tool for aluminum fin machine

- Patent fractional spray lubricating system, saving 60% lubricant, both sides even coating 100%

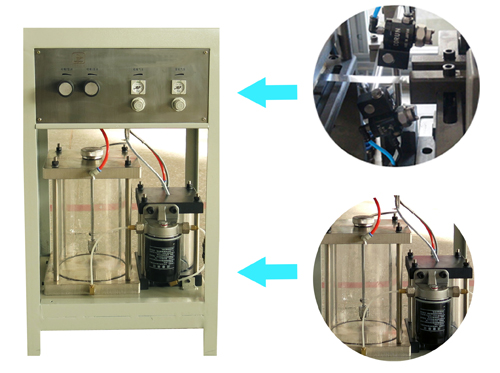

fractional spray lubricating device for aluminum fin machine

- Super high forming speed: we have machines in 100m/min, 180m/min and 280m/min.

- Double-head aluminum foil pay-off, quicking changing foil coil

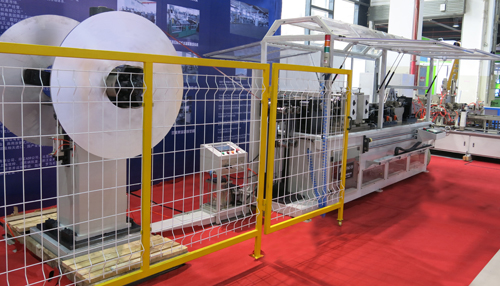

aluminum fin machine with double-head foil pay-off

II Main technical data of aluminum radiator fin rolling machine:

Item

GP-100

ZS-180

GS-280

Fin material

laminated or single foil

Foil pay-off

Double-head, inverter control motorized

Foil reel OD /ID

Customized

Fin height

Based on rolling tool

Height tolerance

±0.015mm

Fin height levelness

Less than 0.05mm

Fin pitch tolerance

+/-0.10mm

Foil feeding speed

0-100m/min

0-180m/min

0-280m/min

Fin rolling speed (max.)

4000 corrugations/min

10000 corrugations/min

16000 corrugations/min

Fin cutting speed (max.)

60 cuts/min

80 cuts/min

80 cuts/min

Cutting tolerance

+/- 0 corrugation (on top of corrugation)

Tool material

Forged high speed steel (W6)

Tool life

> 0.20 billion corrugations for laminated foil

> 0.25 billion corrugations for single foil

Total motor power

3.4kW

13.5kW

13.5kW

Compressed air source

0.6MPa

Machine dimension

4200 x 900 x 1800mm

4200 x 1200 x 2500mm

6400 x 2000 x 2500mm

Machine weight

3000kg

4500kg

4500kg
