Auto weighing & packing machine

I Description

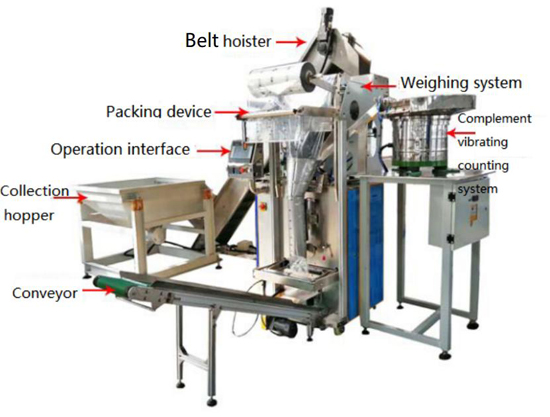

This machine is for automatically weighing, counting and sealing brazing rings.

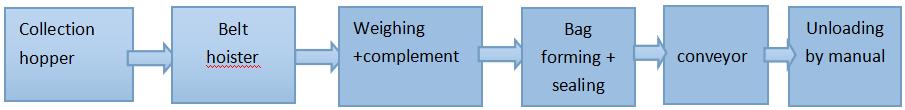

Rings will be fed into weighing system by a belt hoister around 90~95% and then fed by a complementary vibrator to reach final 100%.

The weighed rings will be sealed by automatically formed plastic bags. Then sealed bags will be transmitted out by a conveyor.

Only need operator take off packed bags from conveyor manually, others are automatic.

II Main Features

-- PLC control, HMI operation, simple & convenient

-- Self-diagnosing machine failures

-- High weighing and counting precision

-- Key parts are made from stainless steel

-- Full automatic production, only manual pouring rings & unloading packed bags

III Main technical data

Item	Data
Applicable products	Any copper graininess products
Package size	Length: 50-300mm; Width: 40-200mm
Packing weight	1-5kg
Packing material	PET/PE; PA/PE; OPP/PE; OPP/CPP film
Max. film width	420mm
Film sealing type	Backside sealing
Production speed	5~6 bags / min
Total electric power	2kW
Pneumatic air source	0.6-0.8MPa
Machine dimension	About 4500 x 1600 x 1800mm
Machine weight	About 800kg
