I Description

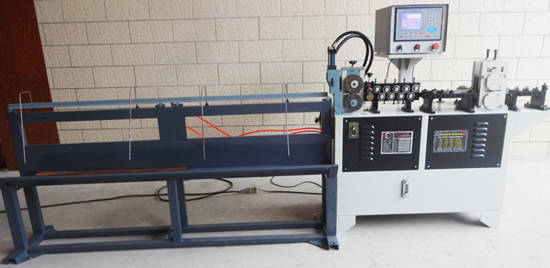

This machine is capable for flattening, straightening & cutting copper wires in high precision.

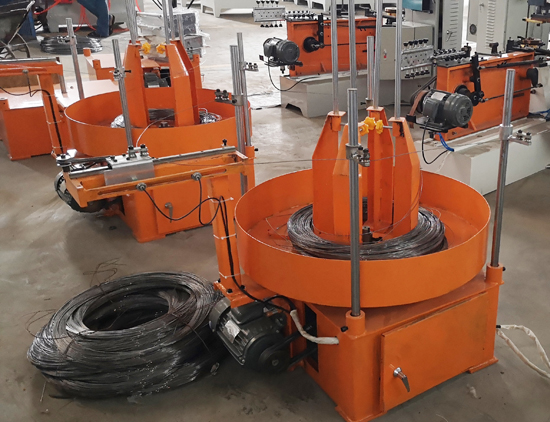

This machine is equipped with an automatic wire pay-off.
The machine is PLC control, HMI operation. Batch quantity can be preset on HMI.
II Main Features
-- PLC control, HMI operation
-- Servo motor driving, non-stop cutting, high precision
-- High precision straightness, high precision cutting to length
-- Automatic wire feeding, better straightening result
III Main technical data
|
Model |
Data |
|
Applicable copper rod size |
Square 3.2 x 3.2mm (or rectangular 3.2 x 1.27mm)* |
|
Flattening wheel diameter |
Φ300mm |
|
Flattening speed |
20~30m/min |
|
Cutting speed |
More than 80 cuts/min |
|
Cut-to-length accuracy |
±0.1mm |
|
Straightness error |
±1mm / 500mm |
|
Flattening motor power |
5.5kW |
|
Inverter for flattening motor |
7.5kW |
|
Decoiling motor power |
2.2kW |
|
Cutting servo motor power |
2.6kW |
|
Main machine dimension |
About 2800 x 1200 x 2000mm |
|
Wire pay-off dimension |
About 1300 x 1000 x 1400mm |
|
Total weight |
About 2000kg |
