Full Automatic Radiator Tank Clinching Machine

I Description

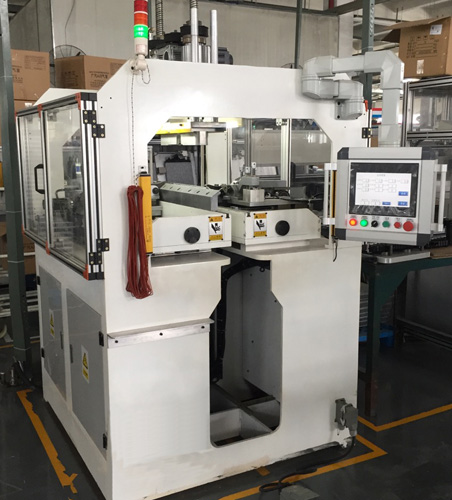

This full automatic radiator tank clinching machine, also called as radiator tank crimping machine or plastic water tank crimping machine, is our state-of-the-art design for clinching plastic tank to header plate of radiator.

This machine has only one working station, both two long edges and two short edges of header plates will be clinched in one cycle automatically.

This machine processes high automation, suitable for most type of existing water tanks.

II Main features

-- PLC control, HMI operation, servo driven, automatic clinching

--Automatic leaving gap for tank mouth, idle stroke quick moving, suitable for various plastic tank clinching.

-- PLC control, technological parameters can be preset and displayed on HMI.

-- Quick and easy changing clinching tool for other size tanks

-- Many units radiator tank parameters can be saved and recalled.

-- Both auto and manual control methods available. Auto method is for working, and manual method is for sampling & testing.

-- Safety measures: alarming lamp, actions interlock, safety grating ruler

-- HMI displaying working conditions

III Main technical data

Item	Data
Suitable core width	450-1100mm
Suitable header plate width	30-140mm
Suitable header plate length	200-1100mm
Clinching pitch	Adjustable, default 10mm
Clinching speed	1-20 times per minute
Deformation of core and header plate after clinching	Less than 0.5mm
Clinching tool changeover time	Less than 10min (for another size tank)
Air source	0.6MPa, 0.01m3/min
Machine dimension	About 2300 x 2200 x 1700mm
Machine weight	About 3200kg

IV Main configuration

-- PLC & HMI: Delta from Taiwan

-- Servo motor& driver: Delta from Taiwan

-- Contactor and circuit breaker: Schneider from China

-- Approaching switch: Omron from Japan

-- Linear guide and ball screw: TBI from Taiwan

-- Pneumatic cylinders, valves and filters: AIRTAC from Taiwan
