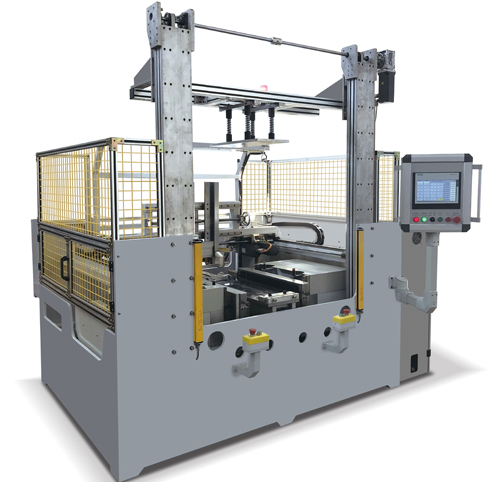

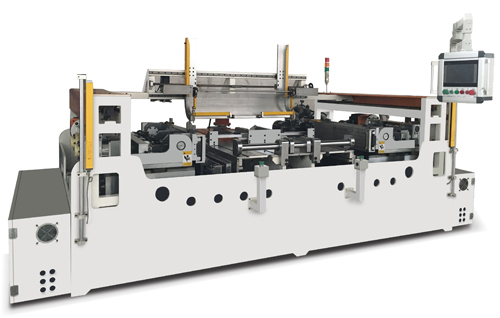

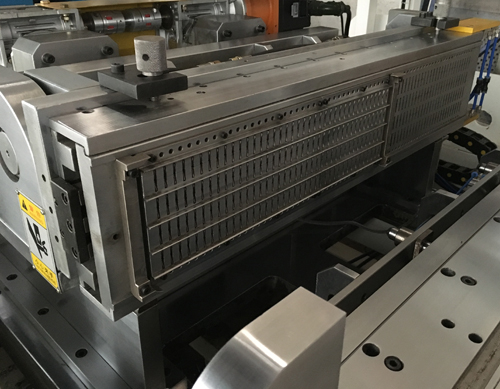

Full Automatic Aluminum Radiator Core Builder With Tube Dispenser

I Main description of full automatic radiator core builder

This machine is specially designed for assembling radiator core of automotive in max. 5-row flat oval tubes structure.

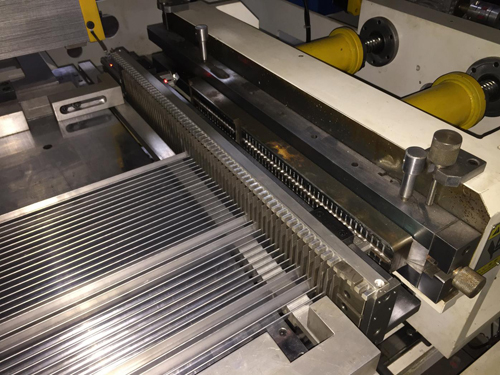

Flat oval tubes are automatically applied by servo driving dispenser.

The machine is capable for different size cores by changing different tools and adjusting pressing strokes.

|radiator core builder|radiator core assembling machine|radiator core building machine|

II Main features of full automatic radiator core builder

- Universal chassis adapting to various size cores

- For different pitch only change pitch control tooling (combing device)

- PLC control +HMI operation|radiator core builder|radiator core assembling machine|radiator core building machine|

- Safety measures are provided such as safety raster, alarming lamp and buzzer

- Servo driven header plate assembling and core clamping,

- Servo driven dispenser applying oval tubes, high working efficiency

III Main technical data of full automatic radiator core builder

Item

Data

Distance between header plates

Customized

Distance between side plates

Customized

Thickness of built core

Max. 5-row

Core building precision

Core diagonal length error

± 1.0mm

Core height error

±1.0mm

Core width error

±1.5mm

Clearance between fin and header plate

2±1mm

Main die changing speed

Less than 30 minutes

Air source

0.6~0.8MPa

|radiator core builder|radiator core assembling machine|radiator core building machine|

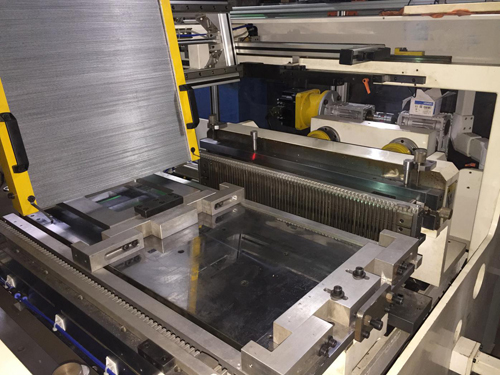

IV Manual dispenser pushing method is an optional, instead of servo driving

|radiator core builder|radiator core assembling machine|radiator core building machine|

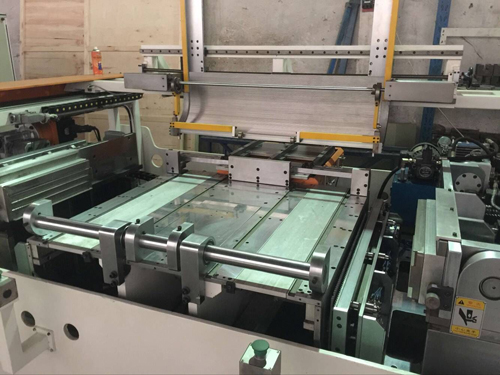

V Automatic pneumatic top clapping device is an optional, instead of manual clapping

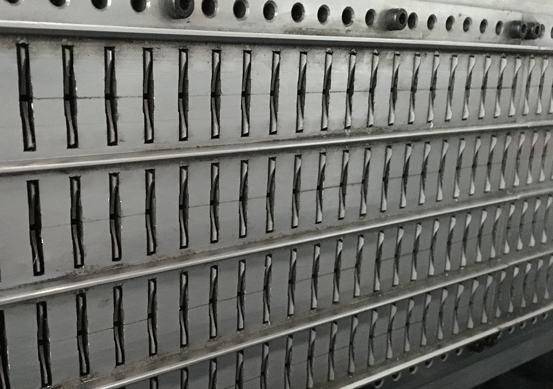

VI Core builder with tube end flaring function is an optional:



When for single-row or double-row radiator cores, we can provide pneumatic side pressing type core builders in cheaper price, which is called semi-automatic core builder for labor intensive production.|radiator core builder|radiator core assembling machine|radiator core building machine|
