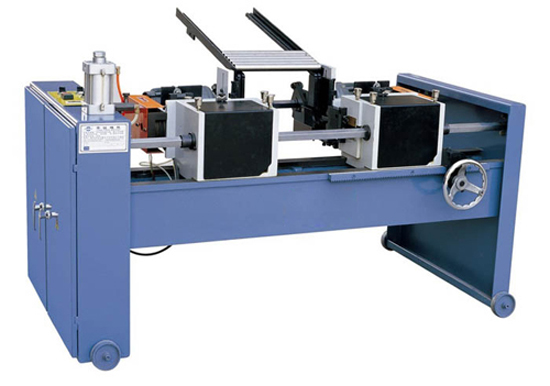

Twin-head Tube Chamfering Machine


This machine is designed with double processing heads for tube end chamfering.

Blank tube feeding is by hopper, automatic feeding.

This machine is PLC control, HMI operation, with automatic loading & unloading device, simple and convenient.

Main technical data:

No.

Item

Data

1

Machine model

ZDDJ-25

ZDDJ-50

2

Applicable tubes

Straightened cut tubes

Straightened cut tubes

3

Applicable tube diameter

9.52~25.4mm

25~50.8mm

4

Applicable tube wall thickness

0.3~1.5mm

0.5~2.0mm

5

Applicable tube length

80~700mm

80~700mm

6

Production speed

30 pieces per minute

25pieces per minute

7

Chamfering motor power

2.2kW x 2

2.2kW x 2

8

Compressed air pressure

0.5~0.7MPa

0.5~0.7MPa

9

Machine dimension

About 2500 x 1000 x 1500mm

About 2500 x 1000 x 1500mm

10

Machine weight

About 1000kg

About 1200kg
