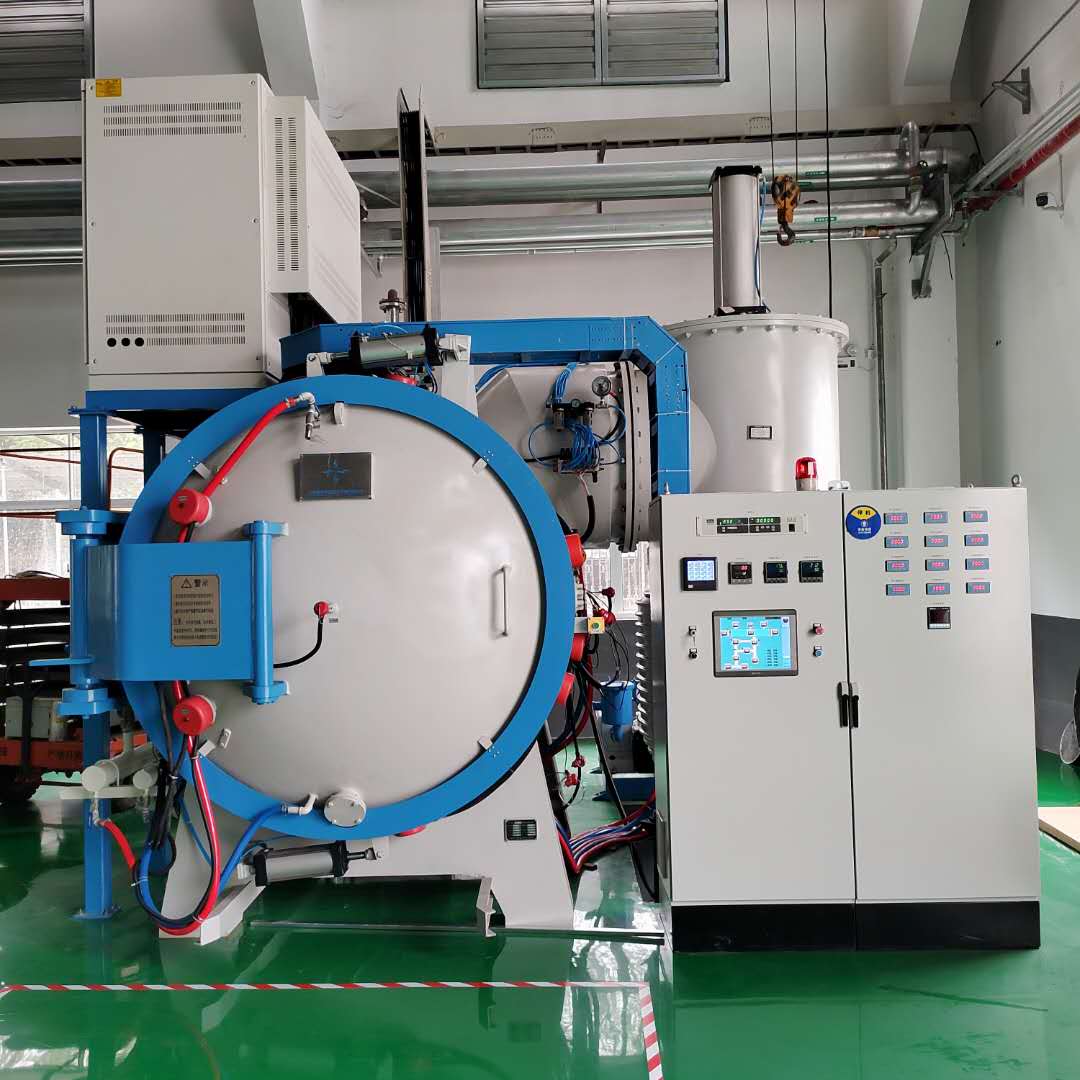

I Description of vacuum brazing oven
ZLQ series vacuum aluminum brazing oven is mainly for brazing aluminum plate & fin type radiator and heat exchanger cores and other aluminum products in vacuum & low-temperature condition.
It can be also used for vacuum annealing and tempering.
This oven is full automatic control, with supervising, tracking and self-diagnosing functions.
Measurement units of all components and meters adopt SI standard.
- Furnace body (horizontal, front-open, double-layer, wall-water cooling)
- Heating room
- Vacuum system
- Gas filling & discharging system
- Water cooling system
- Electric heating source
- Electric control system

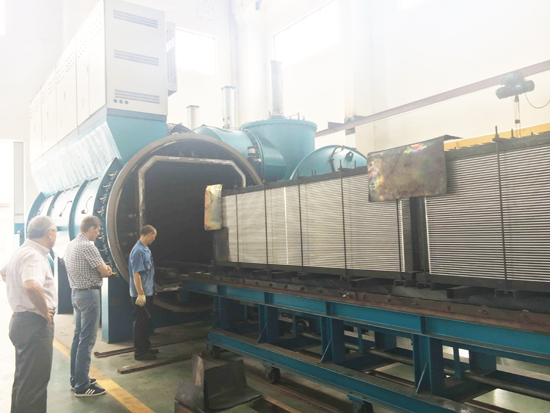

- Loading & unloading trolley
III Main technical data
|
No. |
Item |
Data |
|
1 |
Effective area |
2500 x 1000 x 700mm |
|
2 |
Loading capacity |
2000kg/cycle |
|
3 |
Ultimate vacuity |
≤6.67 x10-4Pa (idle, cold) |
|
4 |
Working vacuity |
≤3 x 10-3Pa |
|
5 |
Max. temperature |
750℃ |
| 6 |
Working temperature |
650℃ |
|
7 |
Temperature evenness |
±3℃ |
|
8 |
Temperature control precision |
±1℃ |
|
9 |
Vacuum leakage rate |
<0.3Pa/h |
|
10 |
Temperature rising time |
≤60 minutes (from ambient tem. to 750℃, idle) |
|
11 |
Heating power |
300kW |
|
12 |
Control method |
PLC |
|
13 |
Total weight |
About 13tons |
|
14 |
Container needed for loading |
One 40’GP |
|
15 |
Workshop occupation |
10 x 7 x 4.5m |
