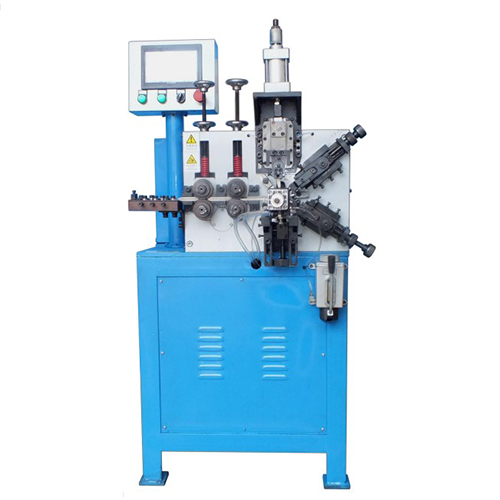

Brazing Ring Making Machine

I Description

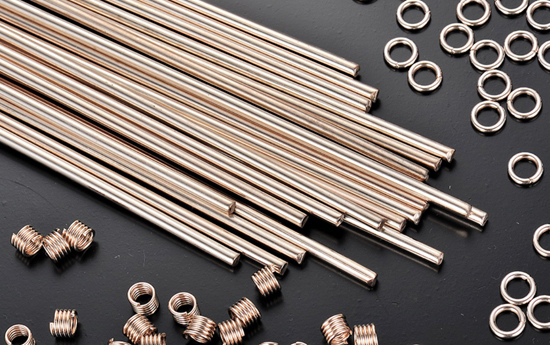

This machine is capable for making various brazing rings in phosphorus copper alloy wire, silver wire, as well as other similar copper alloy wires.

II Main Features

-- PLC control, HMI operation, full automatic production

-- Servo feeding, high speed and high precision

-- Flexible for different ring sizes with help of forming dies

-- Equipped with tapping device for flat ring

III Main technical data

Item	Data
Applicable wire diameter	Φ0.5-2.0mm
Applicable ring diameter	Φ 3-20mm
Suitable ring shape	Single or multi circles
Production speed	0-120 rings/min
Ring diameter accuracy	±0.2mm
Total electric power	3.4kW
Main machine dimension	About 1140 x 910 x 1540mm
Machine weight	About 450kg

IV Main configuration

- PLC & touch screen: Mitsubishi from Japan

- Servo motor & driver: Mitsubishi from Japan

- Pneumatic components: Airtac from Taiwan

- Switch, contacts: Schneider brand
